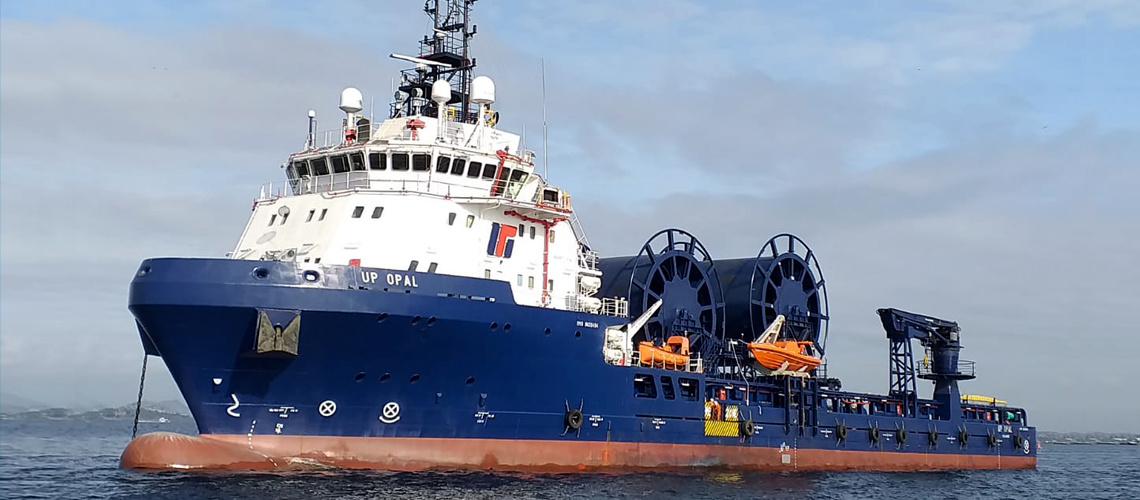

UP Opal
Specialty Vessels
Main Particulars
Length Overall
277.6 ft
84.6 m
Depth
24.3 ft
7.4 m
Loaded Draft
19.9 ft
6.1 m
Deadweight
5,064 Lt
5,145 Mt
Tonnage (ITC) GRT
3,601
Tonnage (ITC) NRT
1,429
Cargo Deck
Tonnage
2,440.8 Lt
2,480.0 Mt
Strength
1,024.1 Lb/ft²
5.0 Mt/m²
Clear Area
10,763.9 ft²
1,000.0 m²
Capacities
Fuel Oil
248,269 USG
940 m³
Potable Water
174,591 USG
661 m³
Drill Water
459,395 USG
1,739 m³
Dry Bulk
14,151 ft³
401 m³
Discharge Rates
Fuel Oil
39,626 USG/hr.
150 m³/hr.
Potable Water
39,626 USG/hr.
150 m³/hr.
Drill Water
39,626 USG/hr.
150 m³/hr.
Liquid Mud
39,626 USG/hr.
150 m³/hr.
Base Oil
39,626 USG/hr.
150 m³/hr.
Brine
39,626 USG/hr.
150 m³/hr.
LFL/Methanol
26,417 USG/hr.
100 m³/hr.
Dry Bulk (Free Air)
1,293 ft³/Min.
37 m³/Min.
Machinery
Main Engines
4 x 2.547 BHP
Emergency Generator
570 BHP
Bow Thruster #1
1220 BHP (Tunnels)
Azimuths
Azimuth Steerable Rolls Royce Thrusters Aft
Deck and Anchor Handling
Tugger Winch #1
10 T
Tugger Winch #2
10 T
Performance
Maximum Speed
14.3 Knots
Cruising Speed
12.0 Knots
Accomodation
Berths
52
Single Cabins
16
Double Cabins
10
4 Person Cabins
4
Hospital
1
Rescue Capabilities
FRC #1
1 x 6 man 4.75 mts Viking Midget MOB boat
Electronics & Controls
Dynamic Positioning
Class 2
DP System
Kongsberg System
DP Reference #1
2 x DGPS
Gyros
3 x Digital Gyrocompass
Radar #1
Furuno S-band ARPA Radar
Radar #2
Furuno X-band ARPA Radar
AIS
1
VDR
1
Special Equipment
Max SWL
2 tons
Crane #1
2 T @ 10m (Stbd)
Documentation
Class
LR ✠100A1 Offshore Supply Ship, Fire-Fighting Ship 1 (2400m3/h) (SUSPENDED), *IWS,✠LMC, UMS, DP(AM)
Flag
Brazil
IMO
9655494
Call Sign
PR5774
MMSI Number
710020260
Build Year
2013
Builder
Mawei Shipbuilding Ltd. China
