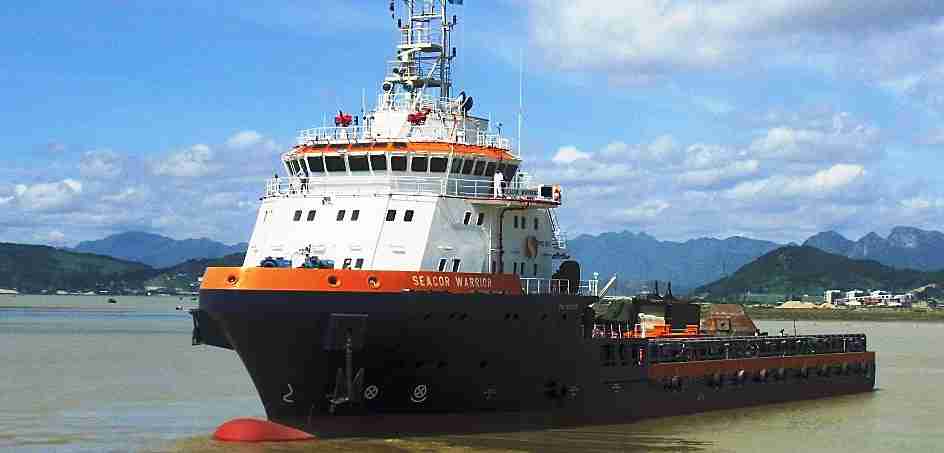

SEACOR Warrior

PSV

280 Seacor Warrior Completo
Main Particulars
Length Overall
285.7 ft
87.1 m
Beam Overall
61.7 ft
18.8 m
Depth
24.3 ft
7.4 m
Loaded Draft
19.9 ft
6.1 m
Deadweight
5,041 Lt
5,122 Mt
Tonnage (ITC) GRT
3,601
Tonnage (ITC) NRT
1,429
Cargo Deck
Tonnage
2,214.5 Lt
2,250.0 Mt
Strength
1,024.1 Lb/ft²
5.0 Mt/m²
Clear Area
10,763.9 ft²
1,000.0 m²
Capacities
Fuel Oil
248,301 USG
940 m³
Potable Water
132,680 USG
502 m³
Drill Water
486,529 USG
1,842 m³
Water Ballast
486,529 USG
1,842 m³
Liquid Mud
636,565 USG
2,410 m³
15,156 BBLs
Dry Bulk
14,151 ft³
401 m³
LFL/Methanol
113,436 USG
429 m³
Discharge Rates
Fuel Oil
324,932 USG/hr.
1,230 m³/hr.
Potable Water
39,626 USG/hr.
150 m³/hr.
Drill Water
21,134 USG/hr.
80 m³/hr.
Water Ballast
39,626 USG/hr.
150 m³/hr.
Liquid Mud
39,626 USG/hr.
150 m³/hr.
Dry Bulk (Free Air)
1,293 ft³/Min.
37 m³/Min.
Machinery
Main Engines
4 x Cummins QSK60-D(M) = 5364 hp
Main Generators
4 x 480 VAC, 2282 kVA (1825 kW)
Total Installed Power
10,191HP (7,600kW)
Emergency Generator
1 x Cummins 630HP (470kW), 1 x 480 VAC, 588 kVA (470 kW)
Bow Thruster #1
1 x TT1850 DPN CP 1,220HP (910kW)
Bow Thruster #2
1 x UL1201 CP 1,072HP (800kW)
Azimuths
2 x 255P30 2,680HP (2000kW)
Deck and Anchor Handling
Anchors
2 x HHP with 9 shots each 50mm Ø
Performance
Maximum Speed
14.3 Knots
Cruising Speed
12.0 Knots
Fuel Consumption
Maximum
264.2 USG/hr
24.0 m³/Day
Cruising
172.8 USG/hr
15.7 m³/Day
Accomodation
Cabins
28
Berths
47
Single Cabins
15
Double Cabins
10
4 Person Cabins
3
Offices
1
Hospital
1
Rescue Capabilities
FRC #1
1 x SOLAS 6 person w/ DAVIT
Electronics & Controls
Dynamic Positioning
Class 2
DP System
Kongsbe K-pos rg w/ C-joy
DP Reference #1
CYSCAN Multi-target Laser Radar Positio ning System
DP Reference #2
DGPS 2 x C-NAV 3050
Gyros
GYROCOMPASS 3 (2 x C-P lath MKI, 1 x Simrad GC-80)
Radar #1
Furuno (S-Ban d & X-B and)
Radar #2
Furuno (S-Ban d & X-B and)
GMDSS
Furuno Felcom 15
Depth Sounder
Furuno F E-700
Special Equipment
Crane #1
2 MT @ 10M
Documentation
Class
ABS ✠A1, Fire Fighting Vessel Class 1, OSR-C2, Offshore Support Vessel,Ⓔ, ✠AMS, ✠ACCU, ✠DPS-2, UWILD, SPS, ESS-LiBATTERY, RW
Class ID
12205659
Flag
Mexico
Official Number
2701351032
IMO
9533701
Call Sign
XCVE4
MMSI Number
345050041
Build Year
2012
Builder
Fujian Mawei Shipobuilding Co.
Hull Number
619-16
