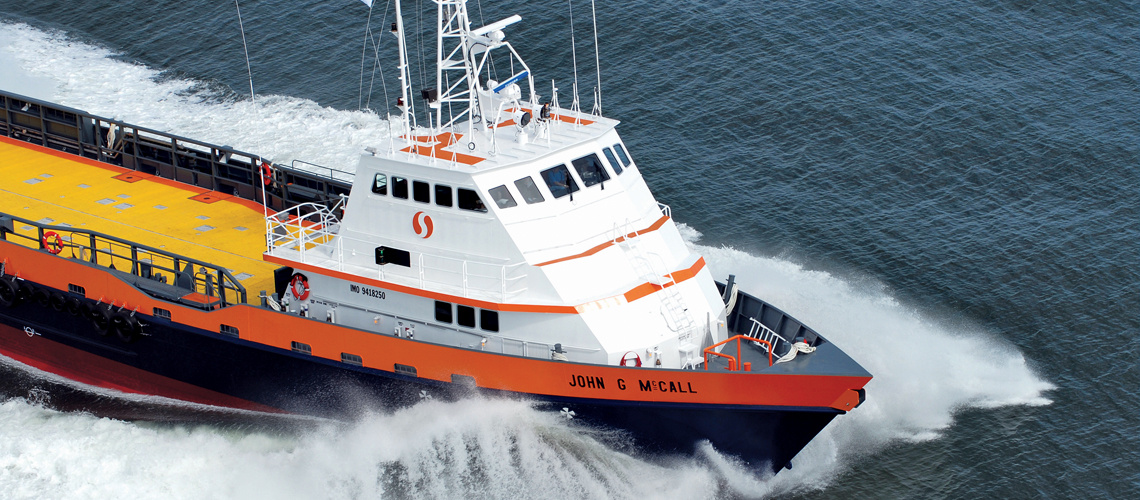

John G. McCall
FSV
Main Particulars
Length Overall
190.0 ft
57.9 m
Beam Overall
34.0 ft
10.4 m
Depth
13.0 ft
4.0 m
Light Draft
7.51 ft
2.29 m
Loaded Draft
10.5 ft
3.2 m
Deadweight
430 Lt
437 Mt
Tonnage (US) GRT
198
Tonnage (US) NRT
148
Tonnage (ITC) GRT
496
Tonnage (ITC) NRT
134
Cargo Deck
Strength
532.5 Lb/ft²
2.6 Mt/m²
Length
123.0 ft
37.5 m
Width
27.9 ft
8.5 m
Clear Area
3,444.5 ft²
320.0 m²
Capacities
Fuel Oil
38,648 USG
146 m³
Potable Water
24,885 USG
94 m³
Liquid Mud
46,204 USG
175 m³
1,100 BBLs
Dry Bulk
2,398 ft³
68 m³
Discharge Rates
Fuel Oil
26,946 USG/hr.
102 m³/hr.
Drill Water
26,946 USG/hr.
102 m³/hr.
Liquid Mud
42,003 USG/hr.
159 m³/hr.
Dry Bulk (Free Air)
13 ft³/Min.
0 m³/Min.
Machinery
Main Engines
5 x Cummins KTA-50-M2 @1800 HP
Main Generators
2 x 290 kW, 180 VAC, 60 Hz, 3f
Total Installed Power
9,000 HP / 6711 kW
Bow Thruster #1
Thrustmaster TH400RN
Bow Thruster #2
Thrustmaster 30TT200
Bow Thruster #3
Thrustmaster 30TT200
Propellers
4 blade Teinbridge 54”x53” Nibral
Rudders
3 Independent x Stainless steel W/ 6” shaft
Deck and Anchor Handling
Anchors
1x Danforth
Chain
1000’ of 1" SS Cable
Winch Model
Coastal 1”
Performance
Maximum Speed
26.0 Knots
Cruising Speed
23.0 Knots
Economical Speed
20.0 Knots
Fuel Consumption
Maximum
420.0 USG/hr
38.2 m³/Day
Cruising
365.0 USG/hr
33.2 m³/Day
Economical
260.0 USG/hr
23.6 m³/Day
Accomodation
Cabins
5
Berths
8
Passengers
36
Single Cabins
3
Double Cabins
3
Crew Mess
1
Rescue Capabilities
Transfer Basket
Rescue Davit and Basket
Electronics & Controls
Dynamic Positioning
Class 2
DP System
Simrad SDP10
DP Reference #1
GPS Garmin 2106
Gyros
2 Gyro Compass
ECDIS
Furuno GP1290NT
Radar #1
Furuno 2127 (ARPA Enabled)
Radar #2
Furuno 2127 (ARPA Enabled)
Radios
1 x portable VHF & 3 x Icom M504
AIS
Furuno FA150
Depth Sounder
Datamarine 3001
Navtex
Furuno NX 700
Special Equipment
Fire Monitors
5300 gpm with 2 monitors
Survival Craft
4 - 12 man floats
Documentation
Class
ABS ✠A1 HSC Crewboat ✠AMS ✠DPS-2
Class ID
07169324
Flag
USA
USCG
Sub Chapter L, OSV Flamable/Combustable Cargo Allowed on Deck EEP Certified for 114 Passengers
Official Number
1192958
IMO
9418250
Call Sign
WDD4719
MMSI Number
367123000
Build Year
2007
Builder
GULF CRAFT, LLC
Hull Number
462
