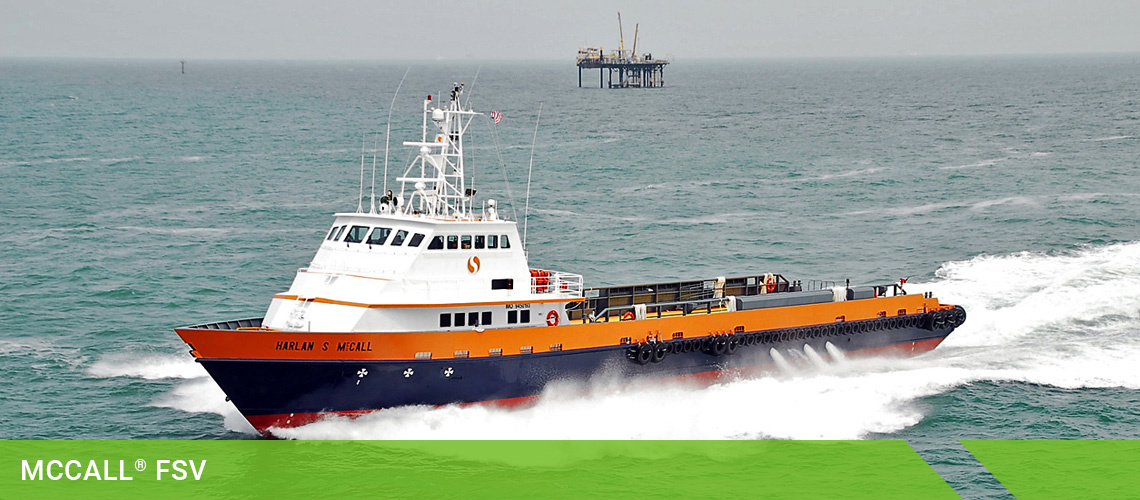

Harlan S. McCall
FSV
Main Particulars
Length Overall
166.4 ft
50.7 m
Beam Overall
30.0 ft
9.1 m
Depth
12.7 ft
3.9 m
Light Draft
6.50 ft
1.98 m
Loaded Draft
10.0 ft
3.1 m
Deadweight
350 Lt
356 Mt
Tonnage (US) GRT
98
Tonnage (US) NRT
67
Tonnage (ITC) GRT
400
Tonnage (ITC) NRT
120
Cargo Deck
Tonnage
275.0 Lt
279.4 Mt
Strength
532.5 Lb/ft²
2.6 Mt/m²
Length
98.1 ft
29.9 m
Width
24.6 ft
7.5 m
Clear Area
2,401.4 ft²
223.1 m²
Capacities
Fuel Oil
26,312 USG
100 m³
Potable Water
43,298 USG
164 m³
Dry Bulk
1,999 ft³
57 m³
Discharge Rates
Fuel Oil
20,870 USG/hr.
79 m³/hr.
Drill Water
48,079 USG/hr.
182 m³/hr.
Dry Bulk (Free Air)
13 ft³/Min.
0 m³/Min.
Machinery
Main Engines
5 x Cummins KTA-38-M2 @ 6750 HP
Main Generators
2 x 290 kW, 480 VAC, 60 Hz, 3f”
Total Installed Power
6750 HP/5033 kW
Bow Thruster #1
Thrustmaster TH200RN
Bow Thruster #2
Thrustmaster 30TT200
Bow Thruster #3
Thrustmaster 30TT200
Propellers
4 blade Michigan 45”x47” Nibral
Rudders
3 Independent x Stainless steel W/5” shaft
Deck and Anchor Handling
Anchors
1x Danforth
Chain
1000’ of 1" SS Cable
Winch Model
Coastal 1”
Performance
Maximum Speed
26.0 Knots
Cruising Speed
24.0 Knots
Economical Speed
21.0 Knots
Fuel Consumption
Maximum
325.0 USG/hr
29.5 m³/Day
Cruising
250.0 USG/hr
22.7 m³/Day
Economical
200.0 USG/hr
18.2 m³/Day
Accomodation
Cabins
5
Berths
7
Crew Capacity
8
Passengers
80
Single Cabins
3
Double Cabins
2
Crew Mess
1
Rescue Capabilities
Transfer Basket
Rescue Davit and Basket
Electronics & Controls
Dynamic Positioning
Class 2
DP System
Simrad SDP10
DP Reference #1
GPS Garmin GPSMAP 215
Gyros
2 Gyro Compass
ECDIS
Coastal Explorer Navigation System
Radar #1
Furuno 8122
Radar #2
Furuno 8122
Radios
1 x portable VHF & 3 x Icom M504
AIS
Furuno FA150
Depth Sounder
1 - Datamarine 3001 & 1 - Furuno
Navtex
Furuno NX 700
Special Equipment
Fire Monitors
1 - stern mounted - 700 gpm monitor
Survival Craft
8 - 12 man floats
Documentation
Class
ABS ✠A1 HSC Crewboat ✠AMS ✠DPS-2
Class ID
07176290
Flag
USA
USCG
Sub Chapter L & T Offshore Supply Vessel & Small Passenger Vessel Flamable/Combustable Cargo Allowed
Official Number
1197514
IMO
9450193
Call Sign
V7RZ8
MMSI Number
538006848
Build Year
2007
Builder
GULF CRAFT, LLC
Hull Number
463
