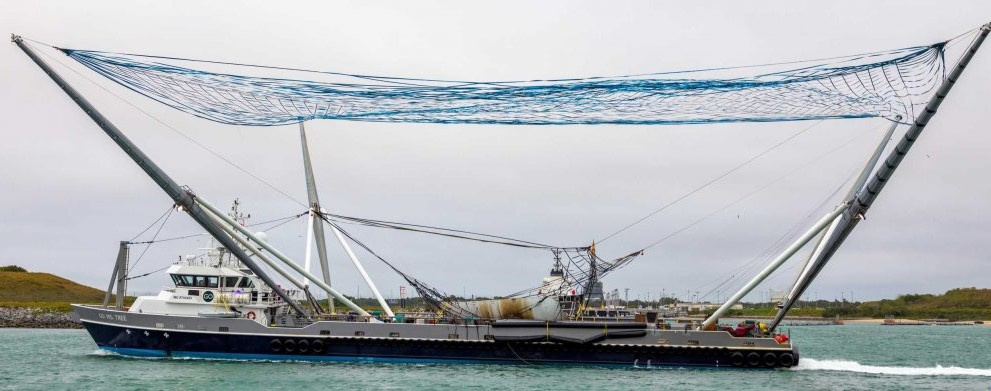

GO MS. TREE
FSV
Main Particulars
Length Overall
205.0 ft
62.5 m
Beam Overall
34.0 ft
10.4 m
Depth
13.0 ft
4.0 m
Light Draft
5.00 ft
1.52 m
Deadweight
510 Lt
518 Mt
Tonnage (US) GRT
96
Tonnage (US) NRT
65
Tonnage (ITC) GRT
496
Tonnage (ITC) NRT
148
Cargo Deck
Tonnage
400.0 Lt
406.4 Mt
Length
136.0 ft
41.5 m
Width
27.0 ft
8.2 m
Clear Area
3,672.0 ft²
341.1 m²
Capacities
Fuel Oil
62,700 USG
237 m³
Potable Water
3,200 USG
12 m³
Drill Water
40,200 USG
152 m³
Discharge Rates
Fuel Oil
21,240 USG/hr.
80 m³/hr.
Drill Water
18,000 USG/hr.
68 m³/hr.
Machinery
Main Engines
(4) 3516C CAT Tier 3 - 10,300HP total
Main Generators
(3) CAT C93 Tier 3 - 250kw
Bow Thruster #1
200hp Thrustmaster - Electric
Bow Thruster #2
200hp Thrustmaster - Electric
Bow Thruster #3
200hp Thrustmaster - Electric
Waterjets
4 x Hamilton Jet HT810
Deck and Anchor Handling
Anchors
1x Danforth
Chain
1000’ of 1" SS Cable
Winch Model
Coastal 1”
Performance
Maximum Speed
32.0 Knots
Cruising Speed
26.0 Knots
Economical Speed
22.0 Knots
Fuel Consumption
Maximum
475.0 USG/hr
43.2 m³/Day
Cruising
464.0 USG/hr
42.2 m³/Day
Economical
272.0 USG/hr
24.7 m³/Day
Accomodation
Cabins
6
Berths
12
Double Cabins
6
Survivors/EEP
100
Electronics & Controls
Dynamic Positioning
Class 2
DP System
Dp-2 Kongsberg KPOS DPS-2 w/Cjoy
DP Reference #1
(2) CNAV DGPS
DP Reference #2
(1) Radius
DP Reference #3
(1) Spot Track
Gyros
3x
ECDIS
Furuno/MaxSea TZ Explorer
Radar #1
Furuno FAR2117BB
Radar #2
Furuno FAR2117DC
Radios
(4) Standard GX5500S
GMDSS
Furuno RC1815
AIS
Furuno FA150
Depth Sounder
1-Furuno GP1870F 1- Furuno DFF1
Navtex
Furuno
VSAT Broadband
Yes
Special Equipment
Fire Monitors
(2)monitors @ 5300 GPM (1) w/ Foam, Remote operation
Survival Craft
4 x 25 Man Inflatable Liferaft
Oil Dispersant
Clearspray 1000
Documentation
Class
ABS: ✠A1, HSC Crewboat, ✠AMS, ✠DPS2, Fire Fighting Capabilities
Class ID
15252765
Flag
USA
Official Number
1249191
IMO
9744465
Call Sign
WDH8234
MMSI Number
368059550
Build Year
2015
Builder
Gulf Craft, LLC
Hull Number
480
